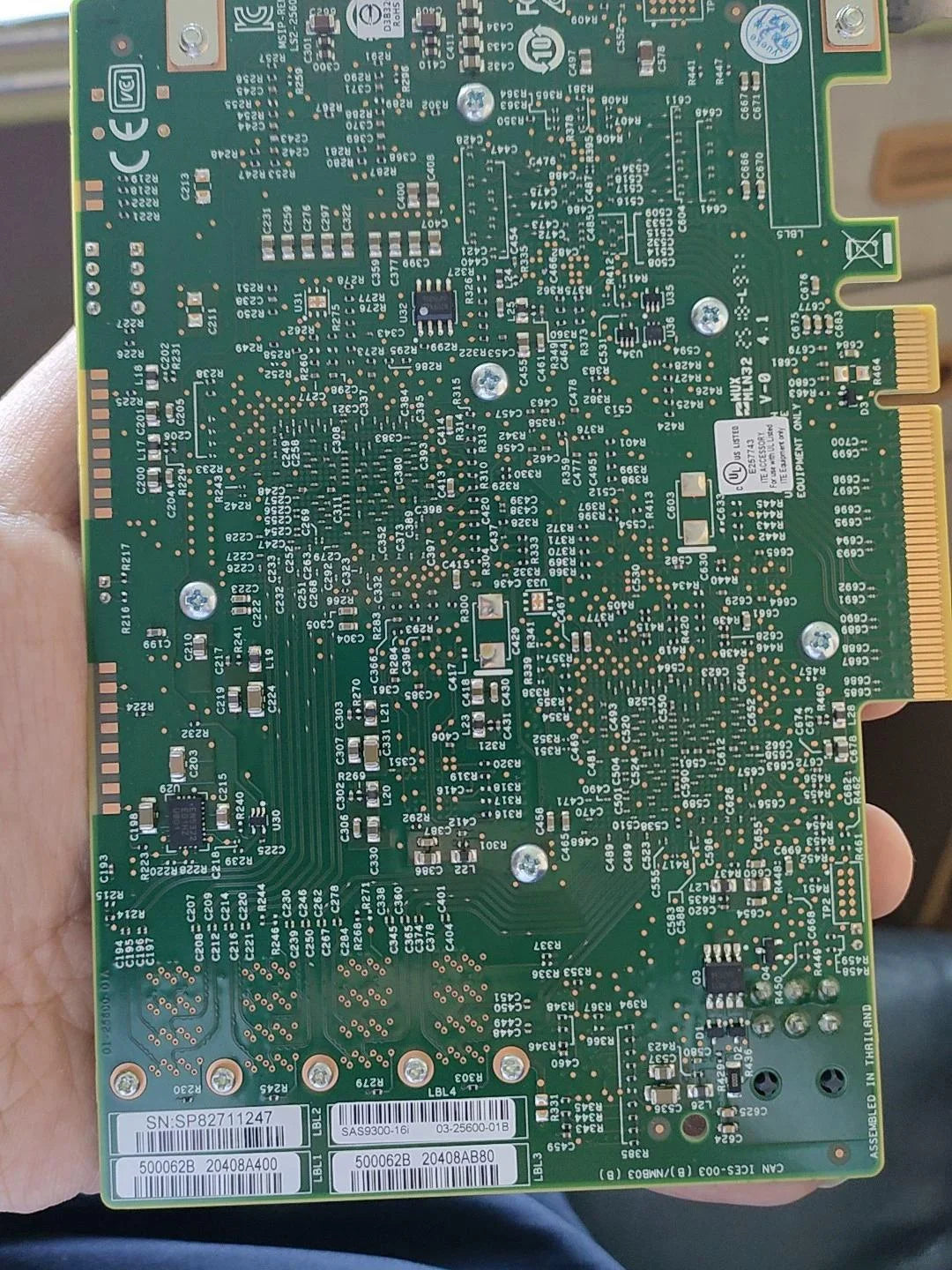

16-Port 12Gb/s SAS SATA HBA Controller Card LSI 9300-16i PCIe 3.0 Host Bus Adapter for Server
16-Port 12Gb/s SAS SATA HBA Controller Card LSI 9300-16i PCIe 3.0 Host Bus Adapter for Server
LSI 9300 Series HBA
The LSI 9300 Series HBA is a HBA (Host Bus Adapter—no RAID) with PCIe 3.0 host interface and 12Gb/s SAS 3.0 port speed, supporting None (HBA pass-through) RAID levels and No cache write cache. No capability—ideal for 4i, 8i, 8e, 16i server storage configurations.
| Specification | Details |
|---|---|
| Pcie | PCIe 3.0 |
| Speed | 12Gb/s SAS 3.0 |
| Ports Range | 4i, 8i, 8e, 16i |
| Sata Support | SATA III 6Gb/s |
| Nvme Support | No (SAS/SATA only) |
| Tri Mode | No |
| Raid Levels | None (HBA pass-through) |
| Cache | No cache |
Frequently Asked Questions
\What is the LSI 9300 HBA card?
The LSI 9300 series is a 12Gb/s SAS 3.0 Host Bus Adapter (HBA) providing direct JBOD pass-through without RAID—ideal for software-defined storage (ZFS, Ceph) and NAS deployments.
Can the 9300 do RAID?
No. The 9300 is an HBA (pass-through only). For hardware RAID, use the MegaRAID 9361/9440/9460/9560 series.
Does the 9300 support NVMe?
No. 9300 supports SAS 3.0 (12Gb/s) and SATA III (6Gb/s) only. For NVMe, use the Tri-Mode 9400/9500 series.
What port configurations are available?
9300-4i (4 internal), 9300-8i (8 internal), 9300-8e (8 external), 9300-16i (16 internal).
Available at Zhongxin Data — enterprise network hardware specialists. Worldwide shipping from Hong Kong.
