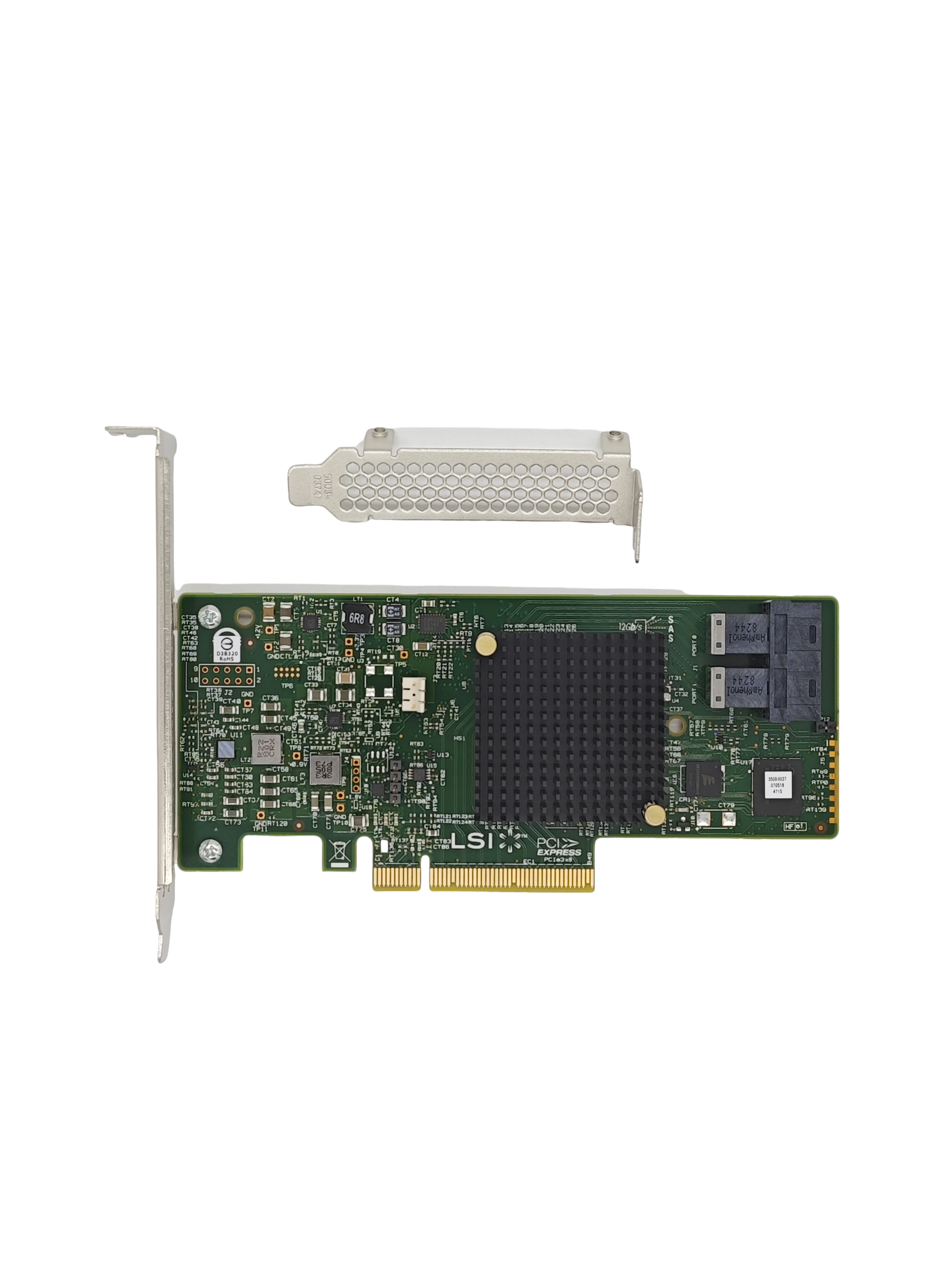

Server NAS Storage RAID Controller MegaRAID 9341-8i 05-26106-00 12Gb/s SAS SATA PCIe 3.0 8 Internal Ports RAID Card
Server NAS Storage RAID Controller MegaRAID 9341-8i 05-26106-00 12Gb/s SAS SATA PCIe 3.0 8 Internal Ports RAID Card
Broadcom MegaRAID 9341
The Broadcom MegaRAID 9341 is a Entry-level RAID Controller with PCIe 3.0 host interface and 12Gb/s SAS 3.0 port speed, supporting RAID 0, 1, 5, 10 RAID levels and 1GB DDR3 write cache. No capability—ideal for 4i, 8i server storage configurations.
| Specification | Details |
|---|---|
| Pcie | PCIe 3.0 |
| Speed | 12Gb/s SAS 3.0 |
| Ports Range | 4i, 8i |
| Sata Support | SATA III 6Gb/s |
| Nvme Support | No |
| Tri Mode | No |
| Raid Levels | RAID 0, 1, 5, 10 |
| Cache | 1GB DDR3 |
Frequently Asked Questions
\What is the MegaRAID 9341 controller?
The Broadcom MegaRAID 9341 is a cost-effective 12Gb/s SAS/SATA RAID controller supporting RAID 0/1/5/10—ideal for small server and NAS deployments needing basic hardware RAID.
Does 9341 support RAID 6?
No. 9341 supports RAID 0, 1, 5, and 10 only. For RAID 6/50/60, use the 9361 or higher series.
Can 9341 handle NVMe drives?
No. 9341 is SAS/SATA only. For NVMe, use the Tri-Mode 9400/9500/9560 controllers.
What cache does 9341 have?
1GB DDR3 cache with optional CacheVault flash backup.
Available at Zhongxin Data — enterprise network hardware specialists. Worldwide shipping from Hong Kong.
